Who am I

Ao (Leo) Li
PhD candidate at S3D/SCS advised by Rohan Padhye and Vyas Sekar
Make complex concurrent and distributed systems easier to debug and test. I focus on both algorithmic efficiency and real-world practicality.

Will this program crash?

static int balance = 100;

void withdraw(int amount) {
	if (balance >= amount) {
		balance -= amount;
	}
}

void main() {
	Thread t1 = new Thread(() -> withdraw(100));
	Thread t2 = new Thread(() -> withdraw(100));
	t1.start();
	t2.start();
	t1.join();
	t2.join();
	assert balance >= 0; // can this assert fail?
}

It depends because this is a concurrent program.

What is Concurrency?

Multiple components (threads, processes, machines) executing simultaneously.
Components interact through shared memory, message passing, etc.
Non-determinism: the exact order of interactions is unpredictable.
Hard to debug and test.

Concurrency Bugs and Race Conditions

Definition: some undesirable behavior that only manifests under certain orderings of component interactions.
Data Race¹
Atomicity Violation
Order Violation
Deadlock
...

1: Not everyone agrees that all data races are race conditions. See John Regehr's post: Race Condition vs. Data Race

Data Race (in Java)

A data race occurs when two threads access the same memory location concurrently, and at least one of the accesses is a write.

a = 0;
b = 0;

Thread 1:

a = 1;
r1 = b;

Thread 2:

b = 1;
r2 = a;

Possible outcomes: (r1, r2) = (1, 0), (0, 1), (0, 0), and (1, 1).

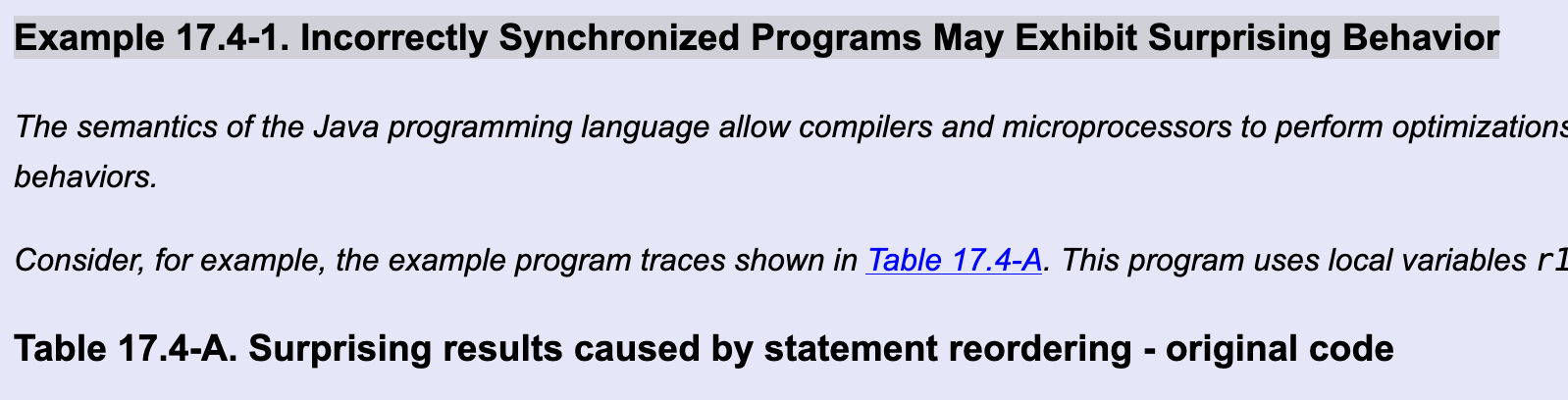

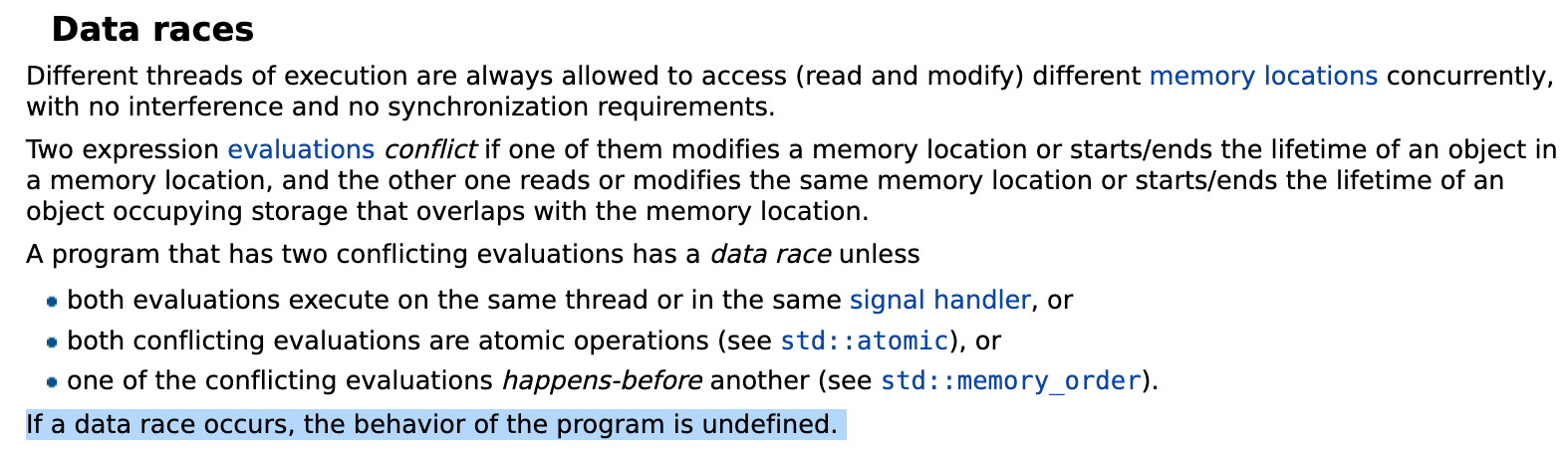

Why data races can be problematic?

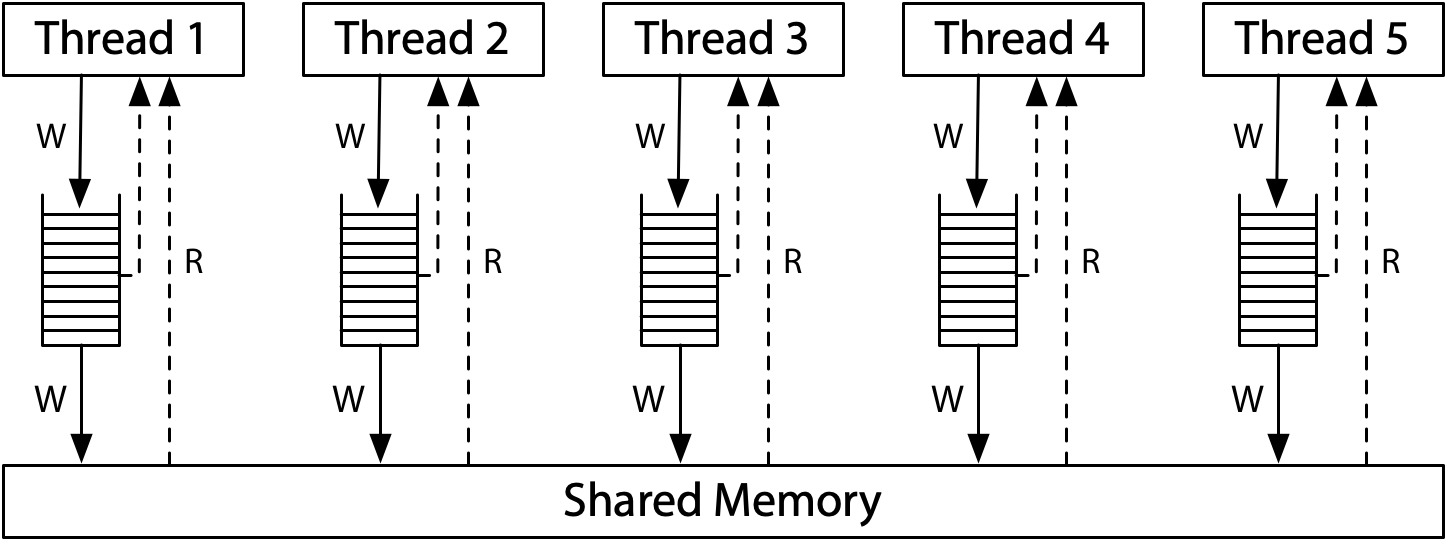

Each core writes to its local cache/buffer before updating the main memory.

One thread may not see the most recent writes from another thread.

Figure from: https://research.swtch.com/hwmm.

Bonus: will data race happen on a single core machine?

Answer: Yes! https://aoli.al/blogs/data-race/

Why data races can be problematic? (Cont'd)

How to Detect Data Races?

Thread 1:


						memory_write_operation(Thread 1, &balance);
						balance = 0;

Thread 2:

memory_read_operation(Thread 2, &balance);
if (balance > 100) {...}

Get context for the memory location being accessed.
Compare current thread's vector clock with last access.

Vector clock is a data structure to understand if two operations are ordered or concurrent.

If there's a previous access from a different thread AND the vector clock show they are not ordered AND at least one is a write.

Report a data race

Time, Clocks, and the Ordering of Events in a Distributed System by Leslie Lamport: https://lamport.azurewebsites.net/pubs/time-clocks.pdf

How to Detect Data Races? (Cont'd)

Static Solutions

OxCaml

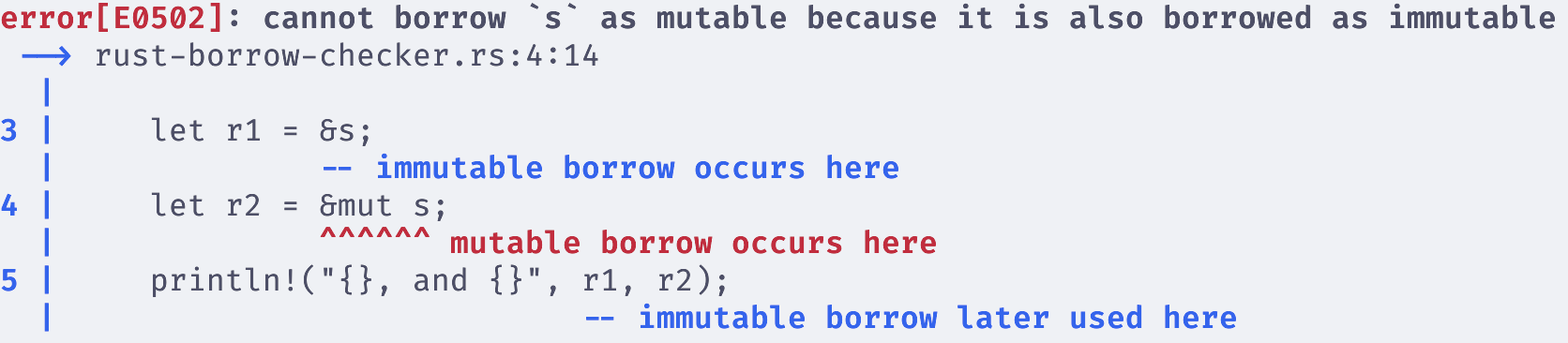

Rust Borrow Checker
Infer (RacerD)

Dynamic Solutions

ThreadSanitizer (TSan)
Go Race Detector
Helgrind (Valgrind)

How to Write Data Race Free Code?

Use (safe) Rust 🦀
Use atomic operations.
```
static AtomicInteger balance = 100;
```
*This is simplified syntax.

Use locks.

lock.lock();
if (balance >= amount) {...}
lock.unlock();

Data Race (Revisit)

a = 0;
b = 0;

Thread 1:

r1 = a;
r2 = a;
if (r1 == r2) {
	b = 2;
}

Thread 2:

r3 = b;
a = r3

Will r1 = r2 = r3 = 2 be possible?

Yes

Data Race (Revisit)

a = 0;
b = 0;

Thread 1:

r1 = x;
if (r1 != 0) {
	y = 42;
}

Thread 2:

r2 = y;
if (r2 != 0) {
	x = 42;
}

Will r1 = r2 = 42 be possible?

No, but why?

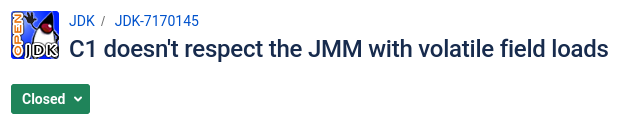

The Java Memory Model

Defines how threads in a Java program interact through memory and what behaviors are allowed in concurrent execution.

Each read can only see writes that happen before them. Reads cannot see writes through data races.
Synchronization order is consistent with program order and mutual exclusion.
The execution obeys intra-thread consistency.
The execution obeys synchronization-order consistency. (A read cannot see a write that is "synchronized" after it.)
The execution obeys happens-before consistency. (A read cannot see a write that happens after it.)

Litmus Testing

Small tests to verify specification behaviors or potential bugs.

litmusTest ({
	object : LitmusIIOutcome () { var x , y = 0, 0 }
}) {
	thread { x = 1; r1 = y }
	thread { y = 1; r2 = x }
	spec {
		accept (0 , 1)
		accept (1 , 0)
		accept (1 , 1)
		interesting (0 , 0)
	}
}

Accept: sequentially consistent outcomes
Interesting: weak but tolerable outcomes
Forbidden: weak intolerable outcomes

Litmus Testing is Stress Testing

Run the litmus test many times (millions or more).
Run the same tests on different cores.
Use different compiler optimizations.
LitmusKt: Concurrency Stress Testing for Kotlin
Java Concurrency Stress (jcstress)
...

Concurrency Bugs and Race Conditions

Definition: some undesirable behavior that only manifests under certain orderings of component interactions.
Data Race ✅
Atomicity Violation
Order Violation
Deadlock
...

Atomicity Violation

static AtomicInteger balance = 100;
void withdraw(int amount) {
	if (balance >= amount) {
		balance -= amount;
	}
}

Two threads call withdraw(100):

Thread 1

Thread 2

Shared balance

r1 = load(balance) // 100

—

100

—

r2 = load(balance) // 100

100

if (r1 >= 100) store(balance, 100 - 100)

—

0

—

if (r2 >= 100) store(balance, 0 - 100)

-100

The withdraw operation is not atomic.

The desired serializability among multiple memory accesses is violated.

Atomicity Violation: the Fix

static AtomicInteger balance = 100;
static ReentrantLock lock = new ReentrantLock();
void withdraw(int amount) {
	lock.lock();
	if (balance >= amount) {
		balance -= amount;
	}
	lock.unlock();
}

Why don't we put locks everywhere?

Performance overhead; deadlocks; ...

Order Violation

void fastWithdraw(int amount) {
	int oldBalance = balance;
	new Thread(() -> withdraw(amount/2)).start();
	new Thread(() -> withdraw(amount - amount/2)).start();
	assert(balance == oldBalance - amount); // can this assert fail?
}

Main thread

Thread A

Thread B

old = balance // 100

—

start(A)

ready

—

start(B)

ready

assert(balance == old - amount)

— (not run yet)

—

withdraw(amount/2) // balance: 50

—

withdraw(amount-amount/2) // balance: 0

The assert may observe balance as 100 (or 50).

The desired order between two (groups of) memory accesses is flipped.

Order Violation: the Fix

void fastWithdraw(int amount) {
	int oldBalance = balance;
	Thread t1 = new Thread(() -> withdraw(amount/2));
	t1.start();
	t1.join(); // Blocked until t1 finishes
	Thread t2 = new Thread(() -> withdraw(amount - amount/2));
	t2.start();
	t2.join(); // Blocked until t2 finishes
	assert(balance == oldBalance - amount); // can this assert fail?
}

Better fix? Did we introduce unnecessary ordering?

Atomicity/Order Violation v.s. Data Race

Data race

Two memory operations ... same time ... one is write
Objective (not always a bug)
Can be detected through language/runtime checks

Atomicity/order violation

Desired order/serializability ... is violated
Subjective (always a bug)
Detection depends on application requirements/specifications

Learning from mistakes: a comprehensive study on real world concurrency bug characteristics Lu et al. ASPLOS '08

How to Find Atomicity/Order Violation Bugs?

void fastWithdraw(int amount) {
	int oldBalance = balance;
	new Thread(() -> withdraw(amount/2)).start();
	new Thread(() -> withdraw(amount - amount/2)).start();
	assert(balance == oldBalance - amount); // can this assert fail?
}

Some possible interleavings

withdraw(amount/2) → withdraw(amount - amount/2) → assert
withdraw(amount - amount/2) → withdraw(amount/2) → assert
assert → withdraw(amount/2) → withdraw(amount - amount/2)
withdraw(amount/2) → assert → withdraw(amount - amount/2)

Concurrency testing: test a concurrent program under different interleavings.

Approach 1: Simple/Stress Testing

void fastWithdrawTest() {
	for (int i = 0; i < 1000; i++) {
		balance = 100;
		fastWithdraw(100);
	}
}

Run the program many times.
Hope to hit the buggy interleaving.
Pros:

Easy to implement; no modification to the program; ...

Cons:

Non-deterministic; not efficient; ...

Approach 2: Directed Yielding

void fastWithdraw(int amount) {
	int oldBalance = balance;
	new Thread(() -> withdraw(amount/2)).start();
	Thread.sleep(1000);
	new Thread(() -> withdraw(amount - amount/2)).start();
	assert(balance == oldBalance - amount); // can this assert fail?
}
